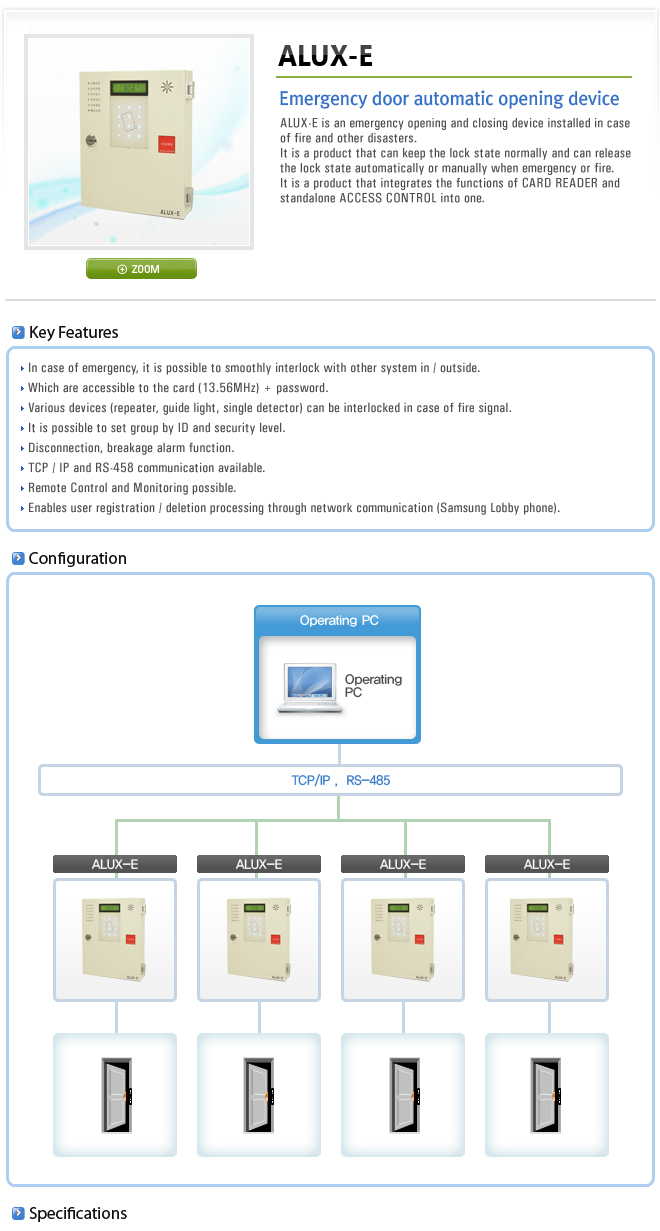

VFDS Home > PRODUCT > ALUX-E

MCU 32bit RISC CPU
Memory NAND Flash 128Mbyte, 16Mbyte RAM
Display LCD, LED, Sound(110dB)
Protocol TCP/IP, RS-485, Wiegnad
User Registration user : 10,000, log : 50,000
Communication TCP/IP, RS-485, RS-232, Wiegand34Bit
In/Out port Input 2Port, output 2port
(Power/Non-power : Emergency opening and closing only)
Lock Electronic striker, EM Lock Interlocking
Power supply input Power AC : 85~264VAC, 47~63Hz
           DC : 15V/1A, Maximum power consumption15W
Secondary Power 12V, 12AH
Dimensions(㎜) 255(L)x200(W)x60(H)
