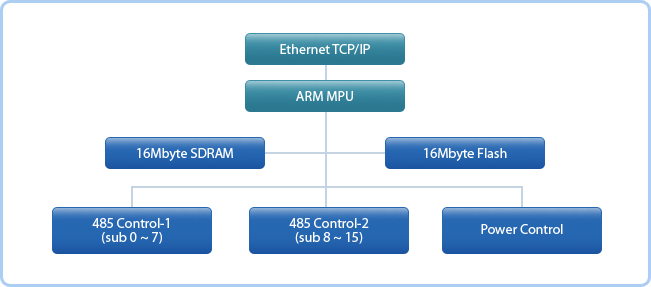

cpu

   72MHz S5N8947 ARM7TDMI MPU

   RTOS BOOT MEMORY

   2Mbyte Flash ROM

   SDRAM

   16Mbyte Main System Memory

   Flash ROM3

   16Mbyte application F/W Memory

   LAN Controller

   STE 100P

   Host Interface

   10/100Base-T Ethernet port

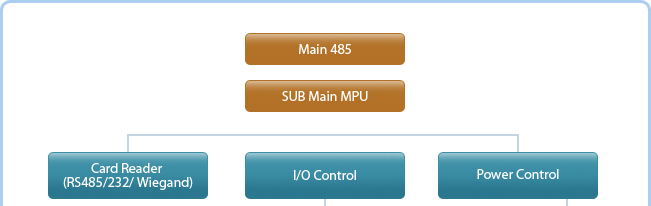

   Sub Control Interface

   RS-485 (2 Port) 16 Sub Controller

   System Setup Interface

   RS-232C (1 Port)

   Upgrade

   TFTP Upgrade

   Status Indicator LCD

   LCD Output

   Operating temperature

   -30℃ ~ 80℃

   Power

   Input AC 220V

   Back-up Battery

   12V, 2AH(Standing by 2-3 hours)

   Dimensions

   257W x 291H x 78D(mm)
