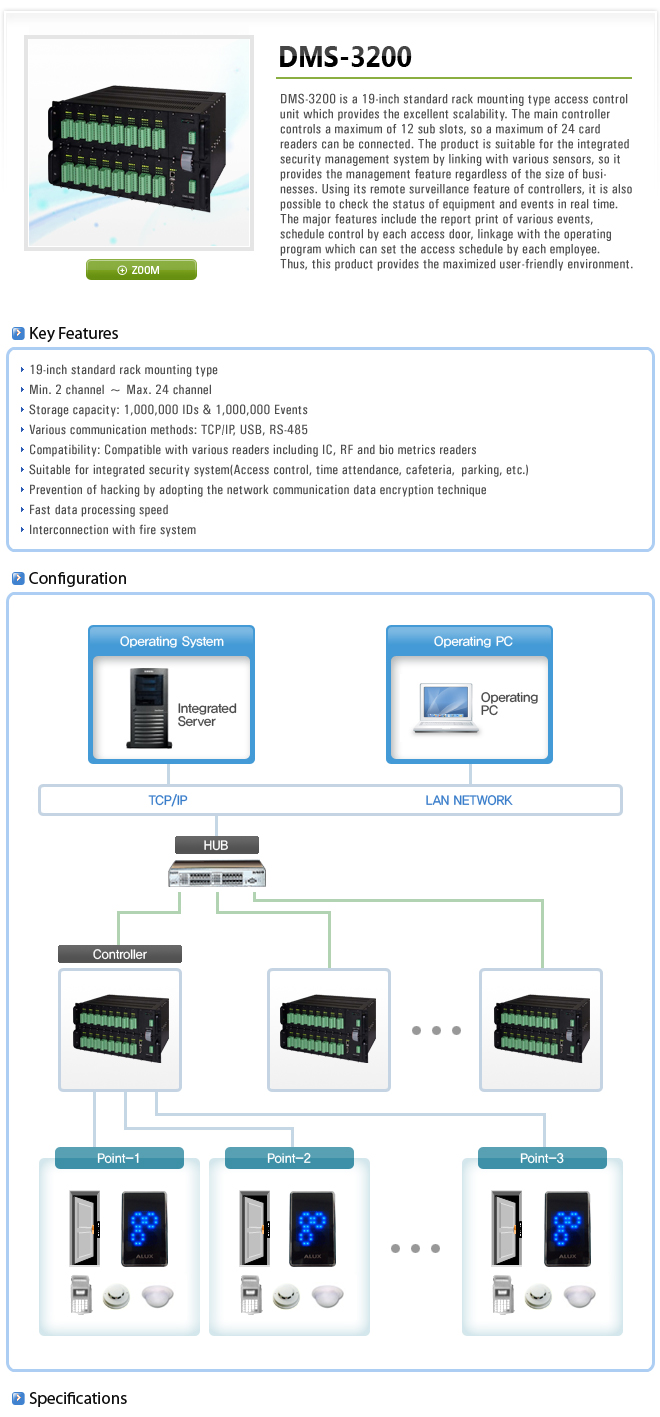

Home > PRODUCT > DMS-3200




CPU S5PV210(32bit ARM Cortex-A8(1GHz))
Memory 512MB NAND FLASH, 256MB mDDR2 RAM
Fire Input 1Port
Sub Slot 8 EA~Max. 16 EA
Card Reader Min. 2 Reader / Max. 32 Reade
Output Relay 2 Relays per slot(Max : 38ea)
Input Port 4 ports per slot, Photo Coupler
Interface TCP/IP, USB, RS485
Event buffer Max. 1,000,000 events
ID Master Max. 1,000,000 IDs
Operating temperature -40℃~80℃
Power supply input Input 100~240VAC/5A
Dimensions(㎜) 483(W)x1350(H)x395(D)
