Home > PRODUCT > System door lock

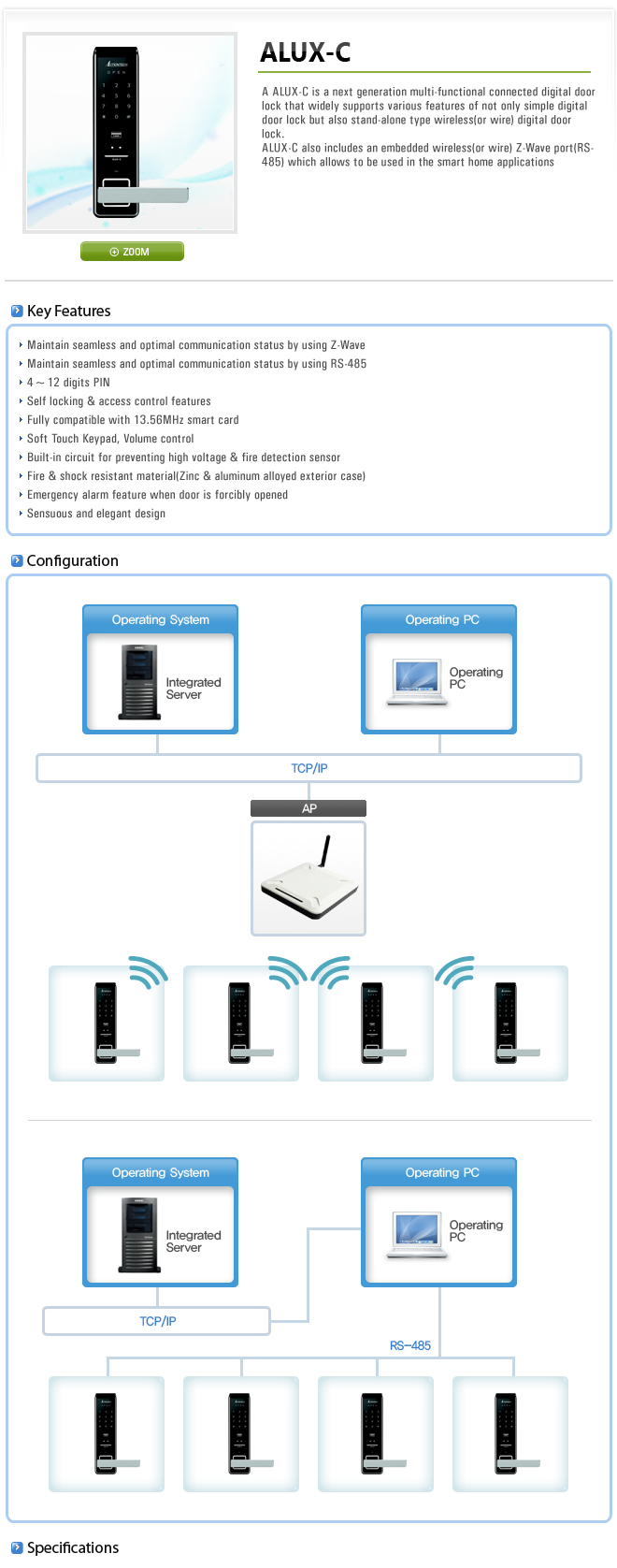

Door Open control PIN / Master number / RF Card / Remote control(447Mhz
Card Type Mifare, ISO14443A/B(13.56MHz)
Keypad Touch key(12Key)
Data storage capacity Max. 200 cards
Communication method Wireless(Z-Wave), Wire(RS-485
Power supply DC 12V(by power supply) or DC 6V (AA type 1.5V alkaline battery x 4),
DC 9V (Emergency power)
Operating temperature -15~55℃
Operating temperature of
high temperature Sensor
65℃
Electic shock 30KV
Weight In body : 375.5g, Out body : 623.5g
Color Black / Silver
Dimensions(㎜) In body : 77W x 212H x 72D, Out body : 81W x 215H x 72D
