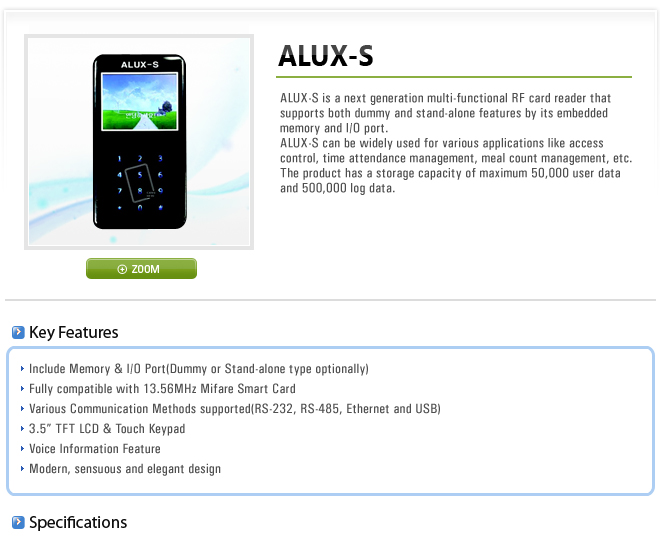

 Home > PRODUCT > ALUX-S |
|
|
| |
| CPU |
32bit Micro processor, RISC |
| Memory |
NAND Flash 128Mbyte, 16Mbyte RAM |
| Card |
Mifare, ISO14443 A, B(13.56MHz) |
| Display |
3.5” TFT LCD(320 x 240) |
| Keypad |
Touch Key(12 Key) |
| Data Storage Capacity |
Maximum 50,000 users, Maximum 500,000 events |
| I/O Port |
In : 2, Out : 2 (N.O / N.C) |
| Communication Port |
Ethernet, RF-485(232), Wigend |
| Protocol |
TCP/IP |
| PC Interface |
USB Device |
| Input Power |
12VDC 300mA |
| Speaker |
Voice output |
| Dimensions(㎜) |
165(L) x 90(W) x 27(H) |
|
|
|
|
