ATC1600 Interface

   RS-485 (support In/Out Port)

   Card Reader Interface

   RS-485 (Option : RS-232c, wiegand 26/34bit)

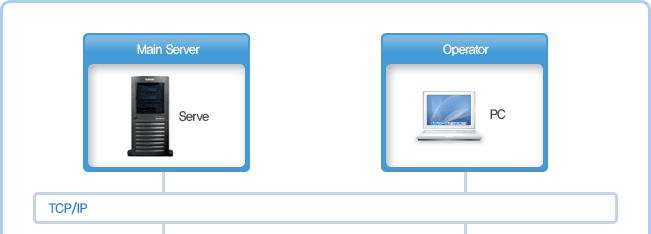

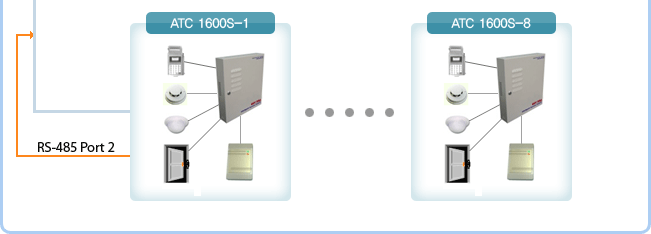

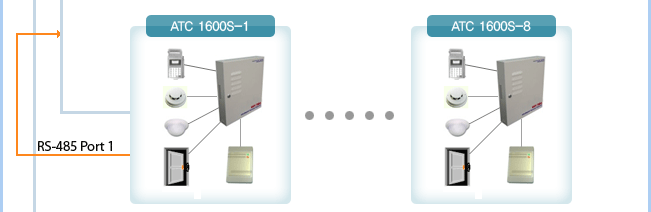

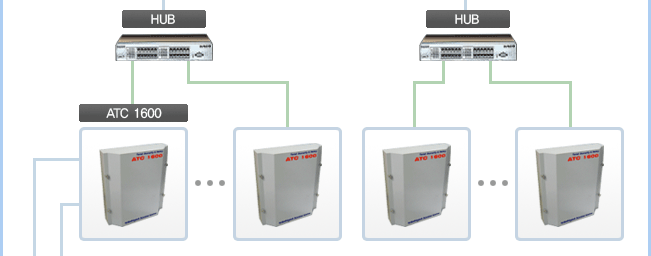

   Topology

   Free

   Dip Switch

   H/W Set-Up (Sub Controller address, Power, Relay port setup)

   3 Input Port

   Door status, Open Switch, Fire

   3Output Relay Port

   Lock drive, Good/Error drive

   RS-232c Port

   External interface(Indicator interlock for cafeteria, attendance)

   Power

   Input AC220V Output DC12V 1.5A

   Back-up Battery

   12V, 2AH(Standing by 2-3 hours)

   Dimensions

   240W x 270H x 50D(mm)
